Power PC

Over 10 different processor families

Other Processor Families

• RISC-V
  Parameterized RISC-V models for MIMD and SIMD
• PowerPC
  Over 10 different processor families
• Coldfire
  Applications for using Coldfire in medical and automotive
• Nvidia Drive-PX
  Models integrated with CAN-FD for ADAS system design
• SPARC and LEON
  Flexible pipeline structure for designing space and missile application
• Intel
  Server, desktop and ATOM processor model
• AMD
  Server and GPU models
• Marvell
  Implementation of the PXA320 for architecture analysis of embedded system design

Quick Explanation

• Supports 4 to 15 stage pipeline
• Supports multiple levels of cache
• Supports RISC ISA
• Support MIMD and SIMD architecture
• Over 20 applications embedded with PowerPC

Protocol

• Xilinx Virtex 5 FPGA- e500, e600
• IBM Power 7, 8
• IBM Open Power
• Freescale- 7410, 8548, 750, 7447A, 8641D,

Model Link

• https://site_9d944a4a-81e8-447a-9623-4142fdcef88a/launchdemo/PowerPC/Network_Processor

PPC – Implements Power PC Processor Model

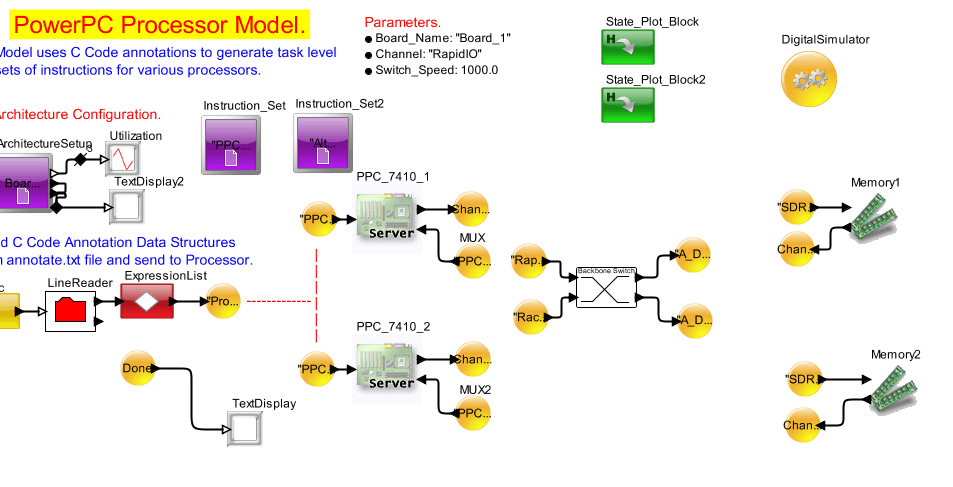

Power PC Processor Model

•
•
•
